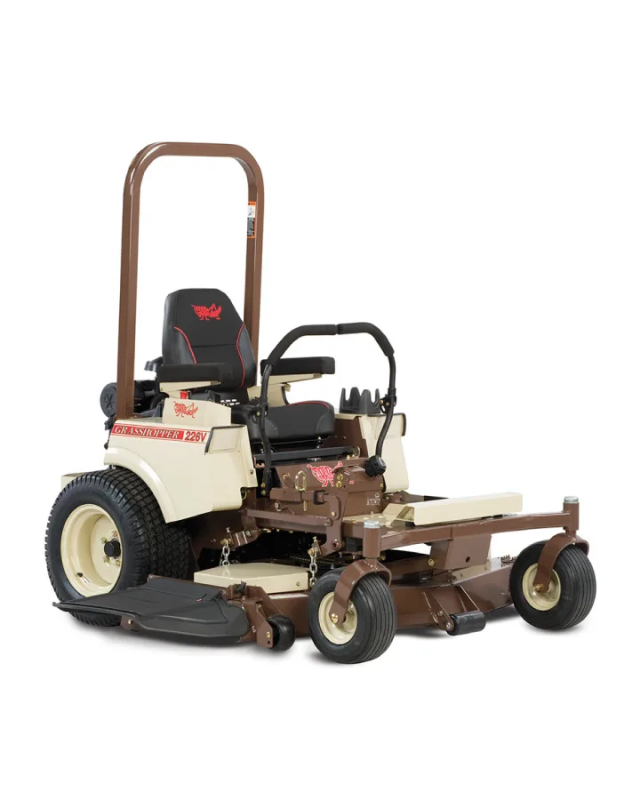

Grasshopper 226V

Description

• The Model 226V-G4 zero-turn riding lawn mower features heavy-duty Hydro-Gear ZT-4400 commercial transaxles with 1-3/8-inch axles and integrated cooling fans for a longer service life. Enjoy the cost-effective zero radius performance and productivity of a professional-quality lawn mower that offers the best in comfort, durability and quality in an affordable package.
• ENGINEType/Horsepower/CylindersB&S Vanguard, V-Twin Displacement49.4 cu. in. (810 cc) Lubrication SystemPressure Lube/Filter CrankshaftVertical Cooling SystemAir FuelGasoline - unleaded Fuel Capacity6.5 U.S. Gal. (26.6 l) Optional Fuel CapacityNA Air CleanerRemote-mounted, centrifugal multi-stage air cleaner with advanced debris management MufflerUltra quiet, single, industrial type.
• TRANSMISSION & STEERING TypeHeavy-duty Hydro-Gear ZT4400 hydrostatic transmissions with cooling fans, integrated transaxles with 12cc piston pumps and 16cc piston motors, gear reduction, internal disc brakes, and 1-3/8 inch axles. Filtration/Hydro FluidSelf-contained fluid and internal filtration. CoolTemp HydroMax? fluid withstands high and low temperature extremes for extended service intervals after 100-hour break-in oil change. Speed0 - 9.0 mph (0 - 14.5 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse Turning RadiusTrue zero degree, turns within own length with counter-rotating, independently powered drive wheels. SteeringOne- or two-hand operation with adjustable HydraSmooth™ QuikAjust Tilt™ dual levers with 9-inch adjustment for a custom fit that automatically return to neutral from either forward or reverse position. BrakesDynamic braking through hydrostatic transmission. Parking BrakeInternal disc brake in transmission
• CUTTING HEIGHT RANGE1.0 to 4.5 in. (2.5 to 11.4 cm) CONSTRUCTION (Robotic-welded steel)Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thic - more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil BLADES (Tempered, alloy steel) – 61" Deck(3) 21 in. (53.3 cm) SPINDLE ASSEMBLIESSentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Spindle head designed to eliminate fiber wrap. Double bearings, non-greasable. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion. SPINDLE HOUSINGS8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern. BLADE DRIVEBelt drive with single Kevlar V-belt and idler arm tensioning
• Drive Wheel Size - 23 x 10.5-12 Front Caster Wheel Size - 13 x 6.50 x 6
• ULTIMATE OPERATOR STATION SeatIso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded foldable arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back. Adjustable fore and aft. SuspensionRoomy, iso-mounted footrest with Shock Impact Reduction System™ (SIRS™). Console-mounted InstrumentsDigital hour meter, parking brake indicator light, ignition switch, choke and push/pull PTO switch. Work LightsOptional - LED Hour MeterStandard
• Commercial Use: 2-year or 800-hour (whichever comes first); limited warranty covering parts and labor. Residential Use: 4-year or 800-hour (whichever comes first); limited warranty: First two years covering parts and labor, last two years covering parts only.
