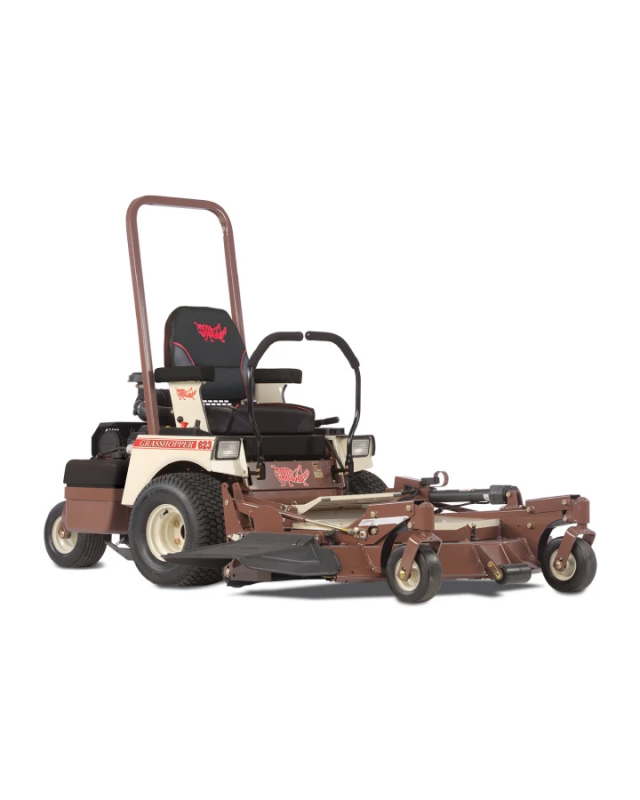

Grasshopper 623T Out Front

Description

• An ideal FrontMount™ solution for home or business use, the Grasshopper Model 623T riding lawn mower with zero-turn maneuverability offers the power, reliability and economical performance that homeowners and lawn care professionals need to get the job done. Make quick work of cleaning the underside of the cutting deck with the exclusive PowerFold® deck lift/electric height adjustment feature. The front-mounted deck removes and can be replaced with turf renovation and snow removal implements for year-round productivity.
• ENGINE Type/Horsepower/CylindersKohler Command Pro, V-Twin Displacement42.4 cu. in. (694 cc) Lubrication SystemPressure Lube/Filter CrankshaftHorizontal Cooling SystemAir FuelGasoline - unleaded Fuel Capacity4.0 U.S. Gal. (15.14 l) Optional Fuel CapacityNA Air CleanerHeavy-duty, remote mounted, cyclonic, dual element air filtration. MufflerUltra-quiet, industrial type
• TRANSMISSION & STEERING TypeT-Drive™ hydrostatic transmission with tandem 12 cc Parker pumps-in-reservoir, in-line CoolFan™ for cooling efficiency, design-matched Parker high-torque wheel motors. AntiVibe Power Platform® reduces vibration for the operator. Filtration/Hydro FluidIntegrated, replaceable, high-efficiency, fine-particle filter / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000 hour change intervals. Speed0-8.5 mph (0-13.7 kph) forward; 0-5.5 mph (0-8.9 kph) reverse. Turning RadiusTrue zero degree, turns within own length with counter-rotating, independently powered drive wheels. Seat is pivot point. SteeringOne- or two-hand operation with adjustable, HydraSmooth™, dual levers that automatically return to neutral from either forward or reverse position. BrakesDynamic braking through hydrostatic transmission. Parking BrakeDisc parking brakes, one for each drive wheel. Attachment DriveTelescoping PTO shaft with two high-speed U-joints, Quik-D-Tatch® coupler and heavy-duty electric Mag Stop® blade clutch/brake.
• CUTTING HEIGHT RANGE1.25 to 5.0 in. (3.2 cm to 12.7 cm) CONSTRUCTION (Robotic-welded steel)Tubular 2.25 in. x 4 in. boxed members with 0.25 in. gussets. Formed double thickness hardened steel (0.239 in. = 3 gauge (6.07mm)) truss spindle plane and (3) Sentry™ spindles and a triple-strength upper deck, over 1/2 inch thick in stress zones. Geometrically engineered design with 7 gauge skirts to withstand the brunt of commercial mowing. SPINDLE ASSEMBLIESSentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. SPINDLE HOUSINGS8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern. BLADE DRIVEMaintenance-free gearbox with single Kevlar V-belt and idler arm tensioning.
• Drive Wheel Size - 20 x 10-8 Single Tail Wheel - 13 x 6.50 x 6
• ULTIMATE OPERATOR STATION SeatIso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back. SuspensionAntiVibe PowerPlatform™ with iso-mounted seat and footrest Console-mounted InstrumentsLow engine oil pressure and parking brake indicator lights, work lights, digital hour meter, ignition and push/pull PTO switches. Choke integrated with throttle lever. Work LightsOptional - LED Hour MeterStandard
• Commercial Use: 3-year unlimited hours; limited warranty: First two years covering parts and labor; third year covering parts only. Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor
