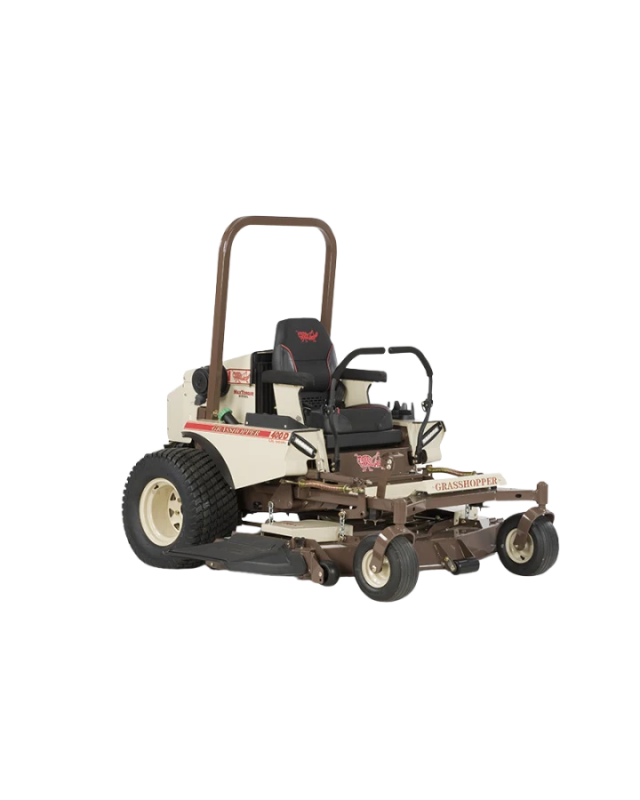

Grasshopper Diesel 400D Rear Discharge 400D/72RD

Description

• Fast and powerful to get the job done on time, every time. The Grasshopper 400D 1.3L zero-turn lawn mower features the legendary power of a Kubota 3-cylinder MaxTorque™ Clean Diesel engine that delivers best-in-class torque and fuel economy. Commercial landscapes depend on Grasshopper mowers for their comfort, performance, productivity, quality and dependability.
• ENGINE Type/Horsepower/CylindersKubota, 3-cyl., MaxTorque™ Displacement77 cu. in. (1261 cc) Lubrication SystemPressure Lube/Filter CrankshaftHorizontal Cooling SystemLiquid FuelDiesel - No. 2 Fuel Capacity12 U.S. Gal. (45.4 l) Optional Fuel CapacityNA Air CleanerHeavy-duty, remote mounted, cyclonic, dual element air filtration. MufflerUltra quiet, single, industrial type
• TRANSMISSION & STEERING TypeDesign-matched G2 hydrostatic system with auxiliary cooling fans, HydroGear variable displacement 21 cc piston-type pumps and high-torque Parker wheel motors. Filtration/Hydro Fluid7 micron absolute, spin-on / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000-hour change intervals. Speed0 - 11 mph (0 - 17.7 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse Turning RadiusTrue zero degree, turns within own length with counter-rotating, independently powered drive wheels. SteeringOne- or two-hand operation with adjustable HydraSmooth™ dual levers that automatically return to neutral from either forward or reverse position. BrakesDynamic braking through hydrostatic transmission. Parking BrakeDisc parking brakes, one for each drive wheel
• CUTTING HEIGHT RANGE1.0 to 5.0 in. (2.5cm to 12.7 cm) CONSTRUCTION (Robotic-welded steel)Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck. BLADES (Tempered, alloy steel) – 61" Deck(3) 21 in. (53.3 cm) – 72" Deck(3) 25 in. (63.5 cm) SPINDLE ASSEMBLIESSentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion. SPINDLE HOUSINGS8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing. Cast iron on 72-inch deck. BLADE DRIVEBelt drive with single Kevlar V-belt and idler arm tensioning.
• Drive Wheel Size - 26 x 12-12 Front Caster Wheel Size - 13 x 6.50-6
• ULTIMATE OPERATOR STATION SeatIso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back. SuspensionInFrame™ suspension with iso-mounted seat and footrest Console-mounted InstrumentsLow engine oil pressure, alternator, temperature and parking brake warning lights, engine temperature and volt gauges, combination electronic fuel gauge/hour meter, two USB charging ports, ignition, work lights, glow plug and push/pull PTO switches. Work LightsStandard - LED Hour MeterStandard
• Commercial Use: 3-year unlimited hours; limited warranty: First two years covering parts and labor; third year covering parts only. Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
