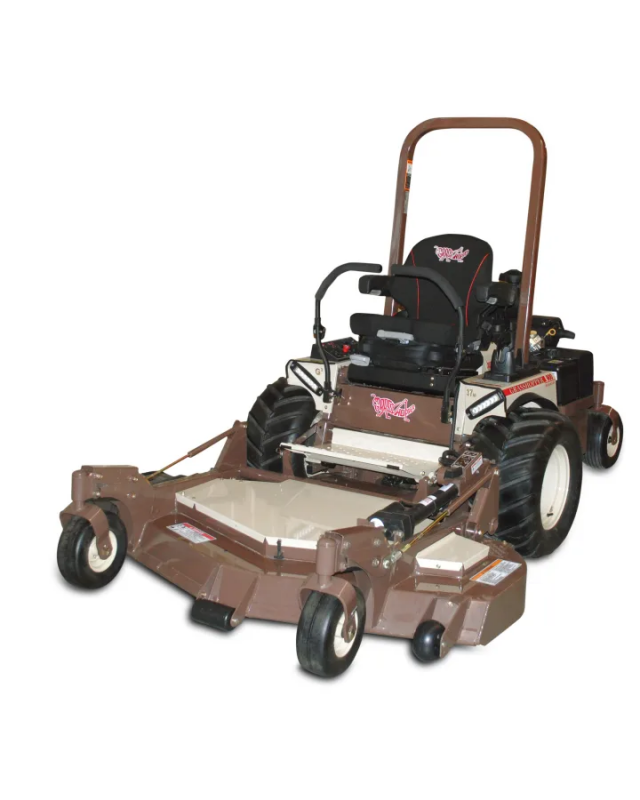

Grasshopper Diesel 900D 61" Side Discharge

Description

• The Grasshopper zero-turn 900D 1.3L riding lawn mower provides more power, durability and maneuverability than any mower in its class. This mower is equipped with a fuel-efficient MaxTorque™ Clean Diesel Tier 4 Final-compliant engine that burns less fuel per hour than gasoline or propane mowers. The 900D 1.3L saves landscape contractors time by powering through heavy grass at faster mowing speeds while still delivering a manicured cut thanks to the higher torque output of the diesel engine. Replace the front-mounted deck with a wide choice of grounds maintenance implements for year-round productivity. Use PowerFold® deck lift/electric height adjustment to rotate the deck up for easy cleaning and to fit more mowers on a trailer.
• ENGINE Type/Horsepower/CylindersKubota, MaxTorque™, 3-cyl. Displacement77 cu. in. (1.3L) Lubrication SystemPressure Lube/Filter CrankshaftHorizontal Cooling SystemLiquid FuelDiesel - No. 2 Fuel Capacity8 U.S. Gal (30.28 l) Optional Fuel CapacityNA Air CleanerHeavy-duty, remote mounted, cyclonic, dual element air filtration. MufflerUltra quiet, single, industrial type
• TRANSMISSION & STEERING TypeRugged, design-matched G3 hydrostatic system with auxiliary cooling fans, HydroGear variable displacement 21 cc piston-type pumps and Parker wheel motors. Filtration/Hydro FluidIntegrated, replaceable, high-efficiency, fine-particle filter / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000 hour change intervals. Speed0 - 11.0 mph (0 - 17.7 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse Turning RadiusTrue zero degree, turns within own length with counter-rotating, independently powered drive wheels. Seat is pivot point. SteeringOne- or two-hand operation with adjustable, HydraSmooth™, dual levers that automatically return to neutral from either forward or reverse position. BrakesDynamic braking through hydrostatic transmission. Parking BrakeDisc parking brakes, one for each drive wheel. Attachment DriveTelescoping PTO shaft with two high-speed U-joints, Quik-D-Tatch® coupler and heavy-duty electric Mag Stop® blade clutch/brake.
• CUTTING HEIGHT RANGE1.0 to 5.0 in. (2.5 to 12.7 cm) CONSTRUCTION (Robotic-welded steel)Tubular 2.25 in. x 4 in. boxed members with 0.25 in. gussets. Formed double thickness hardened steel (0.269 in. 7.6% thicker than 0.25 in. (6.35 mm)) truss spindle plane and (3) Sentry™ spindles and a triple-strength upper deck, 1/2 inch thick in stress zones. Geometrically engineered design with 7 gauge skirts to withstand the brunt of commercial mowing. BLADES (Tempered, alloy steel) – 61" Deck(3) 21 in. (53.3 cm) – 72" Deck(3) 25 in. (63.5 cm) SPINDLE ASSEMBLIESSentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion. SPINDLE HOUSINGS8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern. BLADE DRIVEMaintenance-free gearbox with single Kevlar V-belt and idler arm tensioning.
• Drive Wheel Size - 24 x12x8 Wide Stance Single Fork Tail Wheel - 13 x 6.50 x 6
• ULTIMATE OPERATOR STATION SeatIso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back. SuspensionInFrame™ suspension Console-mounted InstrumentsLow engine oil pressure, alternator, temperature and parking brake warning lights, engine temperature and volt gauges, combination electronic fuel gauge/hour meter, two USB charging ports, ignition, work lights, glow plug and push/pull PTO switches. Work LightsStandard - LED Hour MeterStandard
• Commercial Use: 3-year unlimited hours; limited warranty: First two years covering parts and labor; third year covering parts only. Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
